Brake Caliper Repair: Complete Guide to Diagnosing and Fixing Issues

Brake calipers are one of the most critical safety components in your vehicle. When they fail, your ability to stop safely takes a hit.

I’ve found that most brake caliper issues can be successfully repaired through rebuilding rather than expensive replacement. That can save you hundreds of dollars, and honestly, it brings back full braking performance.

Through my experience working on brake systems, I’ve learned that catching caliper problems early can prevent dangerous situations and bigger repair bills. Common symptoms like uneven braking, your car pulling to one side, or brake fluid leaks usually mean your calipers need attention—fast.

In this guide, I’ll walk you through the process of diagnosing and rebuilding brake calipers. We’ll go from spotting the warning signs to bleeding the system after repairs.

Whether you’re dealing with a seized piston, leaking seals, or sticky guide pins, I’ll show you the techniques and tools I’ve used to get calipers working like new again.

Understanding Brake Calipers

Brake calipers are the muscle behind your disc brake system. They use hydraulic force to press the brake pads against the rotors.

I’ll break down their role in stopping power, different caliper designs, and the main parts that make them tick.

Role in the Brake System

Brake calipers are the last link in your hydraulic brake system. When I hit the brake pedal, brake fluid travels through the lines to the calipers.

The caliper gets this pressurized fluid and turns it into mechanical force. Inside, pistons push outward as fluid pressure rises.

Those pistons shove the brake pads against the spinning rotor. All that friction? That’s what actually slows your wheels down.

Without calipers working right, your brakes just can’t generate enough force to stop safely. Brake calipers are critical for safe stopping performance and need to keep steady pressure on both sides of the rotor.

Each wheel with disc brakes has its own caliper. That gives you independent braking control at each corner of your car.

Types of Brake Calipers

I usually see two main kinds of brake calipers: floating and fixed.

Floating Calipers slide on guide pins and use a single piston on one side. The piston pushes the inner pad, and the caliper slides to squeeze the outer pad against the rotor.

They’re cheaper to make and show up on most regular cars. But you have to keep those guide pins greased, or they’ll stick.

Fixed Calipers bolt directly to the suspension and use multiple pistons on both sides—sometimes two, four, or even six in total.

Fixed calipers spread pressure more evenly and handle heat better. They’re common on performance and heavy-duty vehicles.

The type you have changes how your brakes feel, what maintenance they’ll need, and what replacements cost.

Common Components

Every brake caliper has a few key parts working together to stop your car.

Pistons do the heavy lifting, moving outward when brake fluid pressure builds. They’re usually steel or aluminum.

Seals and Boots keep brake fluid inside while letting the piston move. Seal replacement is crucial during caliper rebuilding to stop leaks.

Guide Pins let floating calipers slide smoothly. They need cleaning and grease to stay free-moving.

Bleeder Screws are used to let air out of the brake system. You’ll find them at the highest point on each caliper.

Brake Hose Connections deliver pressurized fluid from the master cylinder. These need to seal tightly to keep pressure up.

The caliper body holds everything together and bolts to the car’s suspension.

Symptoms of Faulty Brake Calipers

Bad brake calipers throw up some pretty obvious red flags. The big ones? Your car pulls to one side when braking, weird squealing or burning smells, and visible brake fluid leaks near the wheels.

Uneven Braking or Vehicle Pull

When I step on the brake and my car veers to one side, that’s usually a caliper issue. A stuck or seized caliper can’t apply even pressure across the wheels.

This uneven pressure means reduced braking power, causing your vehicle to pull to one side. One wheel bites harder or softer than its opposite.

Sometimes, the brake pedal just feels weird. A soft or spongy brake pedal might mean air in the lines from caliper trouble.

Warning signs of uneven braking:

• Car drifts left or right when braking
• Steering wheel jerks during stops
• One wheel gets hotter than the others
• Uneven tire wear patterns

Worn pads can make it all worse. When calipers stick, the pads wear out faster on that side.

Unusual Noises and Smells

Bad calipers make noise. Squealing or squeaking noises during braking usually mean the caliper isn’t releasing properly.

A stuck caliper keeps the pads pressed against the rotor, even when you’re not braking. That metal-on-metal contact makes a sharp, high-pitched squeal.

Sometimes there’s a burning smell coming from the wheels. Overheated rotors give off a strong, acrid odor that’s hard to ignore.

Common brake caliper noises:

• Squealing when braking
• Grinding sounds from wheels
• Clicking during turns
• Scraping while driving

The burning smell gets worse after driving or when you park. If you ever see smoke from your wheels, stop driving right away.

Corrosion inside the caliper can cause the pads to hit the rotor unevenly. That leads to squeaks that come and go.

Leaking Brake Fluid

Brake fluid leaks near the wheels mean bad caliper seals or cracks. You’ll spot leaks by wet spots or little puddles by each wheel.

Fresh brake fluid is clear or pale yellow. Old fluid turns brown or black and feels slick between your fingers.

Brake fluid leaks drop the hydraulic pressure your brakes need. That makes the pedal feel soft, and your car takes longer to stop.

Signs of brake fluid leaks:

• Puddles under the parked car
• Low brake fluid in the reservoir
• The brake pedal sinks to the floor
• Brake warning light comes on

I check brake fluid levels in the master cylinder reservoir often. A sudden drop, even without obvious leaks, could mean internal caliper damage.

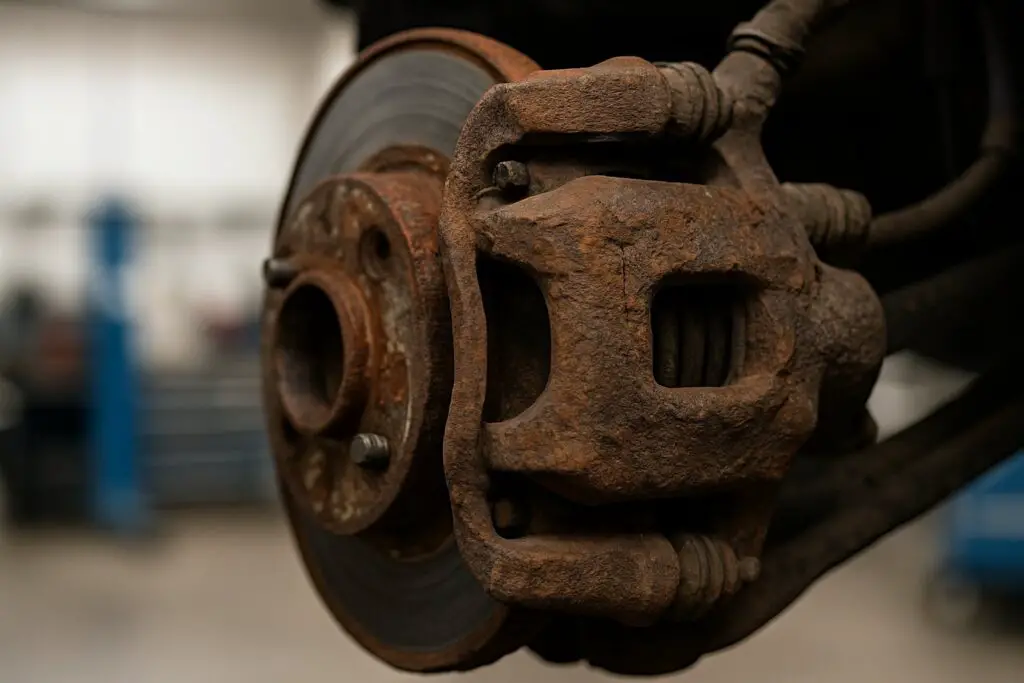

Corrosion eats away at rubber seals inside the caliper. Road salt and moisture just speed up the process.

Diagnosis and Inspection Procedures

To diagnose caliper problems, I check three things: visible damage or leaks, the condition of the piston and bore, and how the pads and rotors are wearing. A systematic inspection catches hidden issues before they turn into brake failure.

Visual Inspection

I start by looking over the whole caliper assembly for obvious problems. Brake fluid leaks around caliper seals or pistons mean the seals are shot and need fixing now.

I look for rust, corrosion, or any damage on the caliper body and mounting bolts. Cracked or torn dust boots let in dirt and moisture.

Key visual checks include:

• Brake fluid puddles under the car
• Wet or stained spots around caliper seals
• Cracked rubber boots on guide pins
• Rust or corrosion on calipers
• Damaged brake lines or fittings

I also check if brake pads are wearing evenly between wheels. If one side wears faster, the caliper piston could be sticking.

Checking Caliper Piston and Bore

I pull the brake pads to get a look at the caliper piston. It should move smoothly when I press the pedal (with a helper, of course).

If the piston sticks or binds, you get brake drag. I test this by supporting the car on jack stands and spinning the wheel by hand. If it’s tough to turn, the caliper’s probably at fault.

Piston inspection points:

• Moves in and out smoothly
• No scoring or pits on the piston
• Piston bore is clean, no deep grooves
• Seal fits properly around the piston

I check the bore for wear during rebuilds. Deep scratches or corrosion in there can make seals fail and cause leaks.

Assessing Brake Pad and Rotor Wear

I measure pad thickness to spot uneven wear. Pads should wear evenly. If they’re tapered or wedge-shaped, the caliper’s acting up.

Worn brake pads show these patterns:

• Inner pad thinner than outer pad – sticking caliper piston
• Outer pad worn more – seized guide pins
• Uneven wear across the pad surface – warped rotor or mounting issues

I check the rotor for heat damage too. Blue spots or deep grooves mean overheating from a dragging caliper. Hot spots feel rough to the touch.

Measuring rotor thickness at a few spots tells me if it’s time for a new one. I use calipers for that—no pun intended.

Preparing for Brake Caliper Repair

Before I start any brake caliper repair, safety comes first. I gather the right tools and make sure everything’s ready—nothing derails a job faster than missing a wrench or forgetting to block the wheels.

Safety Precautions

I always throw on safety glasses and nitrile gloves before messing with brake fluid. That stuff can seriously mess up paint and sting if it splashes on skin or in your eyes.

I park the car on flat ground and yank the parking brake. Then I chock the wheels that stay on the ground—last thing I want is the car rolling away.

I disconnect the negative battery terminal before starting. That way, I don’t have to worry about electrical gremlins while I’m working on the brakes.

I keep a fire extinguisher nearby since brake cleaner is flammable. I always try to work somewhere with good airflow—those fumes from cleaners are no joke.

Honestly, I never rush brake jobs. Taking it slow just feels safer and helps avoid dumb mistakes.

Required Tools and Supplies

Here’s my basic tool list:

• Brake caliper rebuild kit with new seals and dust boots
• Brake cleaner for blasting away grease and old crud
• Brake grease (usually red silicone)
• C-clamp or a piston compression tool
• Socket wrench set and open-end wrenches
• Flathead and Phillips screwdrivers
• Wire brush for cleaning threads

I always make sure the rebuild kit matches my car’s year and model. It should have the right piston seals, dust boots, and any other hardware.

Fresh brake fluid is a must for bleeding after the repair. I double-check I’ve got enough DOT 3, DOT 4, or DOT 5.1—whatever my car needs.

Vehicle Lift and Wheel Removal

I use a floor jack at the correct jacking points to lift the car. Jack stands are non-negotiable—I never trust just a jack.

I put jack stands under solid frame spots or the right support areas. Then I lower the car onto the stands and give it a little shake to make sure it’s stable.

Before lifting, I break the lug nuts loose while the wheel’s still on the ground. That way, the wheel doesn’t just spin.

I pull the wheel off completely and set it aside somewhere safe. Now I’ve got clear access to the caliper with nothing in the way.

I slide a drain pan under the area to catch any brake fluid that might drip out during the job.

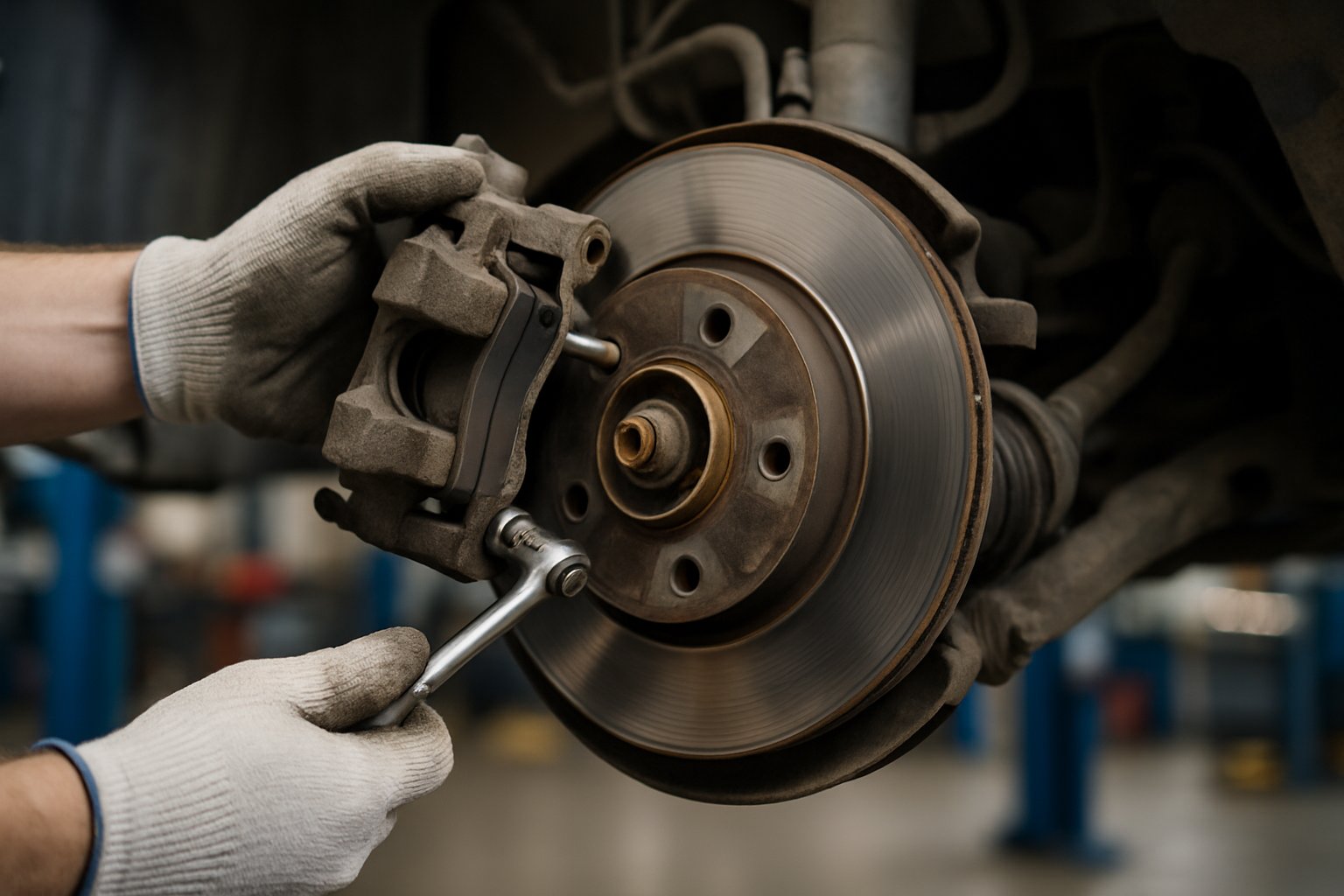

Disassembling and Removing the Caliper

Taking off the caliper means disconnecting the brake hose, unbolting the mounting bracket, and getting the piston assembly out. You’ve got to be careful here—damaging any part can make reassembly a nightmare.

Detaching the Brake Hose

I find the brake hose where it connects to the caliper. That flexible line is what brings brake fluid to the caliper itself.

Before I loosen anything, I set a drain pan underneath for any spilled fluid. I use a flare nut wrench and carefully loosen the fitting at the caliper.

Important safety steps:

• Wear safety glasses and gloves
• Clean the area first
• Turn the fitting counterclockwise, nice and slow

As soon as the hose is off, I cap it to keep out moisture and dirt. Brake fluid loves to suck in water from the air, which can wreck the whole system.

Sometimes a clip or bracket is holding the hose to the caliper. I pop that off before I fully remove the hose.

Removing Caliper Bracket

The caliper bracket bolts to the steering knuckle or axle housing with two big bolts. I have to remove the caliper from the bracket before I can get to those.

I use a socket wrench on the bracket bolts—they’re usually pretty tight, so it takes some muscle.

Bracket removal steps:

1. Remove brake pads if they’re still in there
2. Unbolt the caliper from the bracket
3. Take out the two main bracket bolts
4. Pull the bracket away from the rotor

The bracket keeps the brake pads in place and gives the caliper somewhere to mount. Some brackets have guide pins sliding through rubber boots.

I always check the bracket for any signs of bending or wear. If it’s damaged, it can cause uneven pad wear.

Caliper Piston Extraction

The piston sits inside the caliper and pushes the pads against the rotor. I need to get it out to replace the inner seals.

I use compressed air to push the piston out of the bore. Pressurizing the inlet and easing the piston out usually does the trick.

Piston removal technique:

• Hook up the air line to the brake hose inlet
• Apply low pressure, slowly
• Control the piston with my hands
• Watch out—it can pop out fast

Some calipers have more than one piston. I block the ones I’ve removed to keep them from sliding back in.

The piston has rubber seals. I check for cracks, swelling, or hard spots—those all mean it’s time for new ones.

Multi-piston calipers can be tricky. I take my time so I don’t scratch the bore.

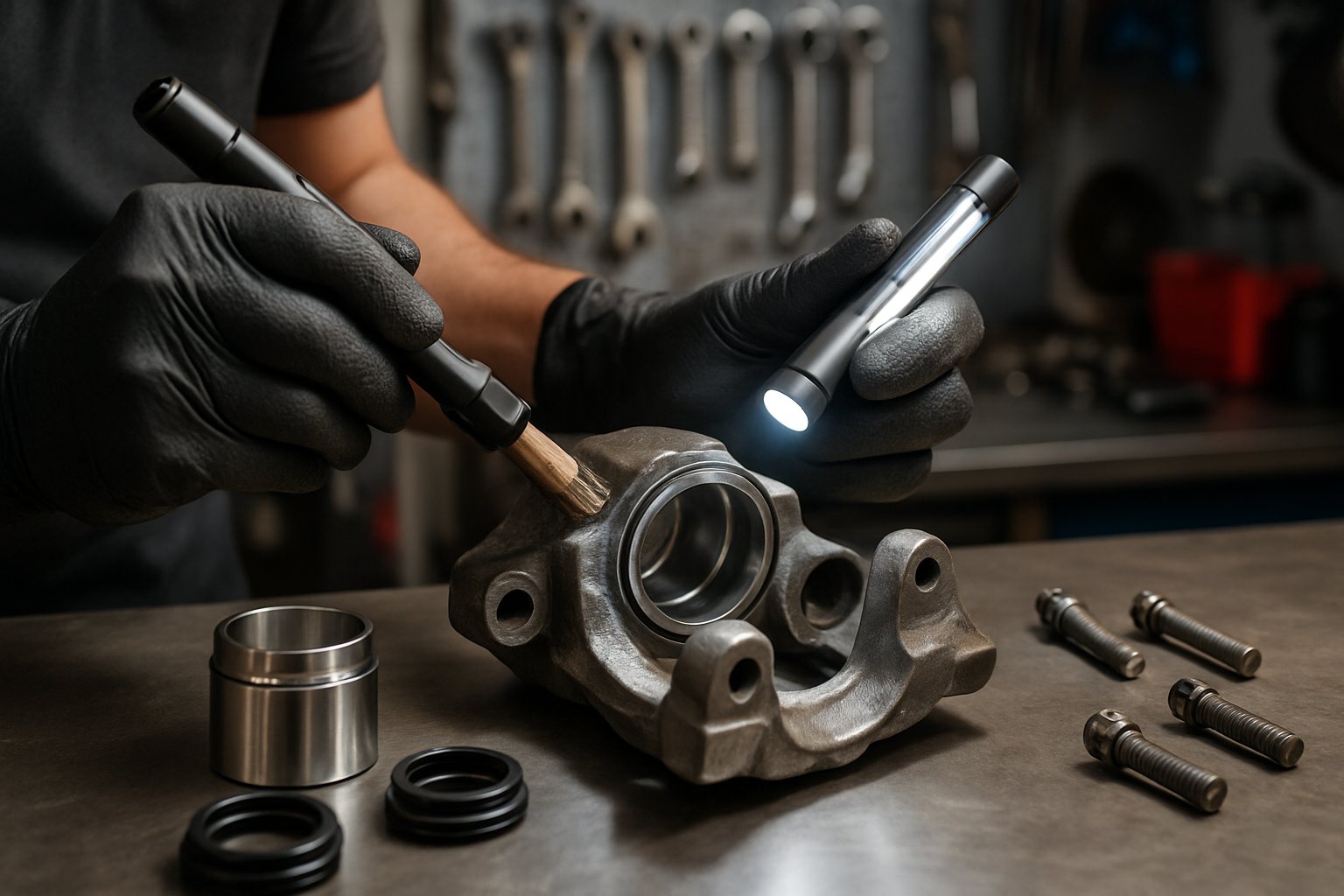

Cleaning and Inspecting Caliper Components

Cleaning gets rid of brake dust and gunk, and inspecting everything helps spot wear or corrosion that could mess up braking.

Cleaning the Caliper Bore

I pull the piston all the way out to get into the bore. Sometimes I need compressed air or a special tool, but I always go easy to avoid damage.

I spray brake cleaner into the bore to dissolve old fluid and grime. The cleaner loosens up anything that might hurt the new seals.

I wipe the bore with a clean, lint-free cloth. No sandpaper or steel wool—scratching the bore is a bad idea.

If there’s stubborn crud, I spray more cleaner and let it soak for a bit. Then I use a brass brush to scrub, but I’m gentle so I don’t gouge the bore.

When I’m done, I flush everything again with fresh brake cleaner. No residue should be left before I start putting things back together.

Inspecting for Corrosion and Damage

I check the bore walls under bright light for pitting, rust, or scratches. Deep grooves mean the caliper’s probably toast.

Critical inspection points include:

• Piston surface—look for chips or gouges
• Bore walls—any scratches or weird wear patterns
• Seal grooves—damage or stretched out spots
• Threaded holes—make sure threads aren’t stripped

I roll the piston on a flat table to check if it’s straight. If it wobbles, it’s done for.

Corrosion around the seal areas usually means moisture got in. Rust stains or mineral buildup are red flags for old or contaminated fluid.

If I think the bore’s worn, I grab calipers and measure. Too much wear, and it’s time for a new caliper.

Preparing Replacement Parts

I double-check that all new seals match the originals. Using the wrong ones is just asking for leaks.

I look over new pistons for any weird marks or defects. If something looks off, I don’t use it.

I keep all the replacement parts in clean containers. Dirt is the enemy here—everything has to stay spotless.

Essential replacement items:

Component	Check For	Replace If
Piston seals	Cracks, hardening	Any damage found
Dust boots	Tears, brittleness	Not pliable
Bleeder screws	Thread damage	Stripped or seized

I put a little fresh brake fluid on the new seals before installing. That helps them slide in without tearing and seat properly in the grooves.

Rebuilding and Reinstalling the Caliper

Rebuilding takes a full kit, the right seal installation, and careful greasing. Each part has to be cleaned and put together in the right order—otherwise, you’re just asking for brake trouble.

Using a Caliper Rebuild Kit

I always grab a rebuild kit that matches my car. It comes with pistons, O-rings, seals, and boots.

Before I start, I check each part in the kit. Pistons need to be smooth—any scratches or pits, and I swap them out.

I clean the caliper bore well with brake cleaner. If there are deep grooves or heavy rust, I don’t bother rebuilding—I just replace the caliper.

The kit’s instructions show the assembly order. I follow them step by step so I don’t damage the new seals.

Installing New Seals and Dust Boots

I lube the new O-ring and piston seal with clean brake fluid before sliding them in. Dry seals can tear and leak right away.

The dust boot needs to sit just right over the seal lips. I press it into the groove gently—stretching or twisting the boot is a no-go.

When I put the piston back, I use steady pressure so I don’t pinch the new seal. The piston should slide in smoothly, no forcing.

I make sure new guide pin boots are installed correctly. They keep dirt and moisture out, which is half the battle with calipers.

Lubrication and Assembly

I put brake grease on the guide pins and where the pads touch. That keeps things quiet and lets the pads move freely.

The bleeder screw goes back in with a dab of thread sealant. I tighten it to spec so I don’t get air leaks when bleeding.

Before mounting the caliper, I do a quick bench bleed to push out any trapped air. Basically, I fill it with fluid and work the piston a few times.

Once it’s back on the car, I install the pads and anti-rattle clips. The last thing is bleeding the system and checking for a firm pedal—no sponginess allowed before driving.

Bleeding and Testing the Brake System

After the caliper’s rebuilt, I bleed the brake lines to get rid of air. Fresh fluid is key for good pressure, and careful bleeding keeps the pedal from feeling mushy.

Proper Bleeding Techniques

I start by attaching clear tubing to the bleeder screw. The other end goes in a container to catch the old brake fluid. This setup keeps air from sneaking back in while I’m at it.

Order matters here. I always go from the wheel furthest from the master cylinder first. For most cars, that’s:

• Right rear wheel (first)
• Left rear wheel (second)
• Right front wheel (third)
• Left front wheel (last)

I’ll have someone press the brake pedal down slowly and hold it. While they’re holding, I crack open the bleeder screw for a couple of seconds to let fluid and air out.

Before they let up on the pedal, I make sure to close the bleeder screw. Otherwise, air could sneak back in and mess up the whole process.

This routine gets repeated three or four times per wheel. I keep going until the fluid runs clean and bubble-free through the tubing. Air in brake lines causes a spongy brake pedal feel and reduced braking performance.

Brake Fluid Top-Up

I’m always checking the master cylinder reservoir while bleeding. Letting it run empty is a rookie mistake—it’ll suck in air.

Keeping the fluid between the minimum and maximum marks is key. If it gets close to halfway, I top it up right away with fresh brake fluid.

I stick to whatever fluid the manual calls for. DOT 3, DOT 4, and DOT 5.1 don’t mix with DOT 5 silicone-based stuff—ever.

Spills happen, but I wipe them up fast since brake fluid will ruin paint and rubber. Old fluid doesn’t go in the trash; I drop it off at an auto parts store or service center.

Once I’ve bled all the wheels, I fill the reservoir to the max line with fresh fluid. The cap goes back on tight to keep moisture out.

Final Inspection and Test Drive

I pump the brake pedal a few times to build up pressure. The pedal should feel firm—not soft or sinking down when I hold it.

Next, I check every bleeder screw to make sure they’re tight. If they’re loose, brake fluid can leak out and air can sneak in, which is just asking for trouble.

I take a close look for leaks around the calipers, brake lines, and master cylinder. Even a tiny drip isn’t something to ignore.

For the test drive, I start off slow in a quiet spot—usually an empty parking lot if I can find one. I go easy on the brakes at first, just to see how they respond at low speed.

The pedal needs to stay firm and responsive. The car should stop straight, without weird noises or pulling to one side. If it doesn’t, well, that’s a problem.

If the brakes feel spongy, I go back and bleed them again. Proper brake system maintenance is critical for safety, and honestly, it’s not something to rush.
