When you press the brake pedal, a surprisingly intricate system jumps into action to slow your vehicle down. At the center of it all is the brake caliper, which holds pistons that push the brake pads onto the rotors, creating friction and stopping the car.
Multi piston calipers use multiple pistons instead of just one to spread pressure more evenly across the pad, giving you stronger stopping power and helping manage heat.
There’s been a definite uptick in interest around multi piston brake systems lately. Drivers are always on the hunt for ways to boost their car’s braking performance.
These calipers usually show up on high-performance and racing vehicles, but you’ll spot them on more everyday cars now too. Extra pistons mean more clamping force and help fend off problems like brake fade when you’re really pushing it.
Figuring out if multi piston calipers are right for your car takes a bit of digging. I’ll break down the main differences between single and multi piston setups, look at where they’re actually used, and share what you should know about installing and maintaining them.
Understanding Multi Piston Calipers
Multi piston calipers use several pistons to spread braking force more evenly across the pad. This means more stopping power and less pad wear compared to single-piston setups.
The number and layout of pistons depends on what the vehicle needs and the brake system’s design.

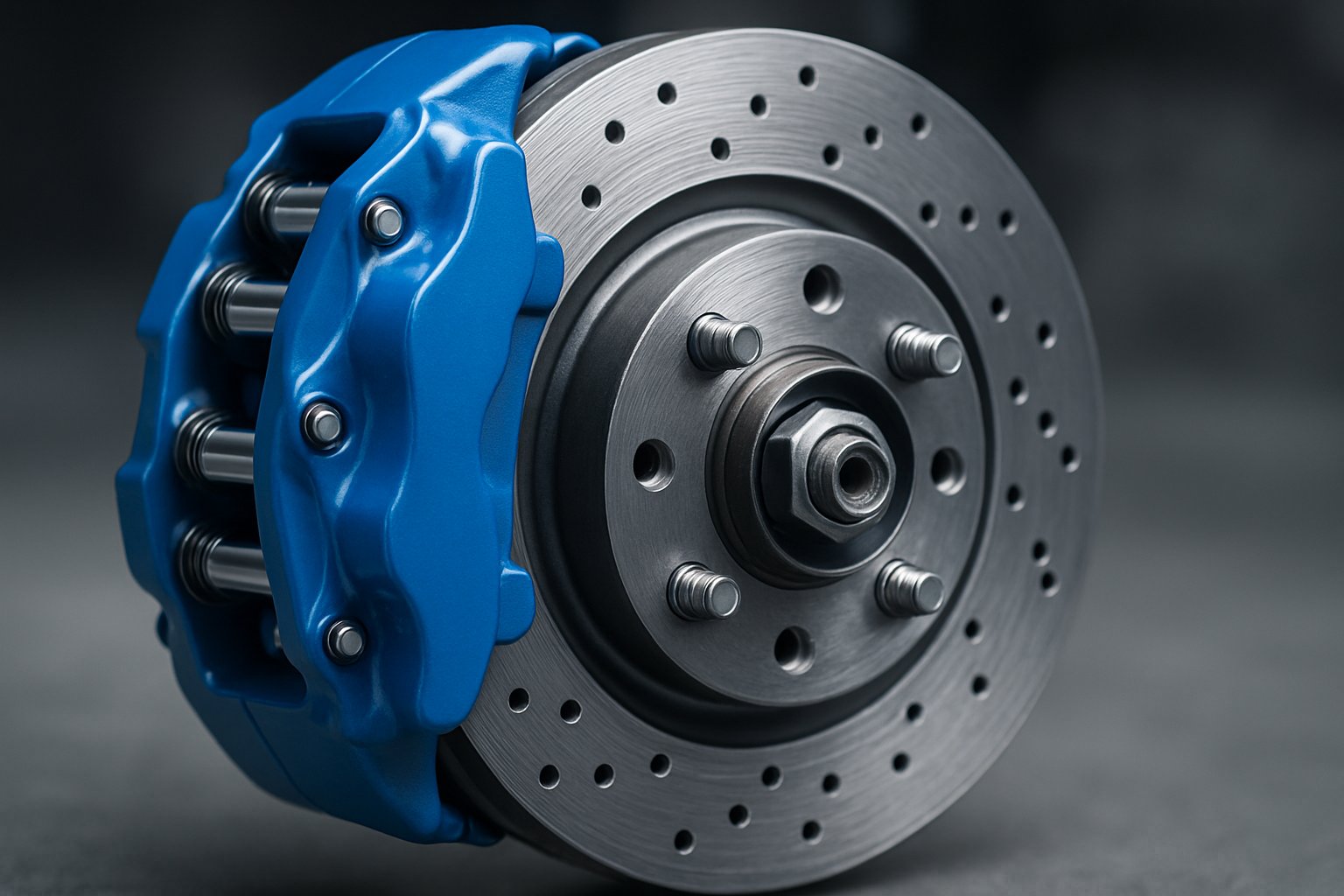

What Are Multi Piston Calipers
Multi piston calipers are brake parts that have two or more pistons, unlike the single piston you’ll find in basic calipers. The most common setups I’ve come across are two, four, or six pistons.
Performance brake kits typically use multi-piston calipers to boost the force applied to the rotor. The pistons work as a team, squeezing the pads onto the rotor with more balanced pressure.
You’ll see these calipers on sports cars, performance models, and even heavy trucks. Plenty of modern luxury and mid-range cars use them up front, since that’s where most of the stopping happens.
The big draw is better braking. More pistons equal more surface area pressing on the pad, so you get stronger clamping force—no need to mess with the master cylinder.
How Multi Piston Calipers Work
When I hit the brake pedal, hydraulic fluid travels from the master cylinder into the caliper. That fluid pushes on all the pistons at once, each getting the same pressure.
The clamping force depends on two things: piston surface area and hydraulic pressure. More piston area means more braking force with the same pressure.
Multi piston calipers also fix pad flex, which happens when a single piston pushes in the middle of a long brake pad and the ends bow up. With multiple pistons, force gets spread along the whole pad.
This keeps the pad flat against the rotor. You get better friction, steadier braking, and your pads last longer.
Types of Multi Piston Configurations
Multi piston calipers come in a few common setups, depending on what the vehicle needs:

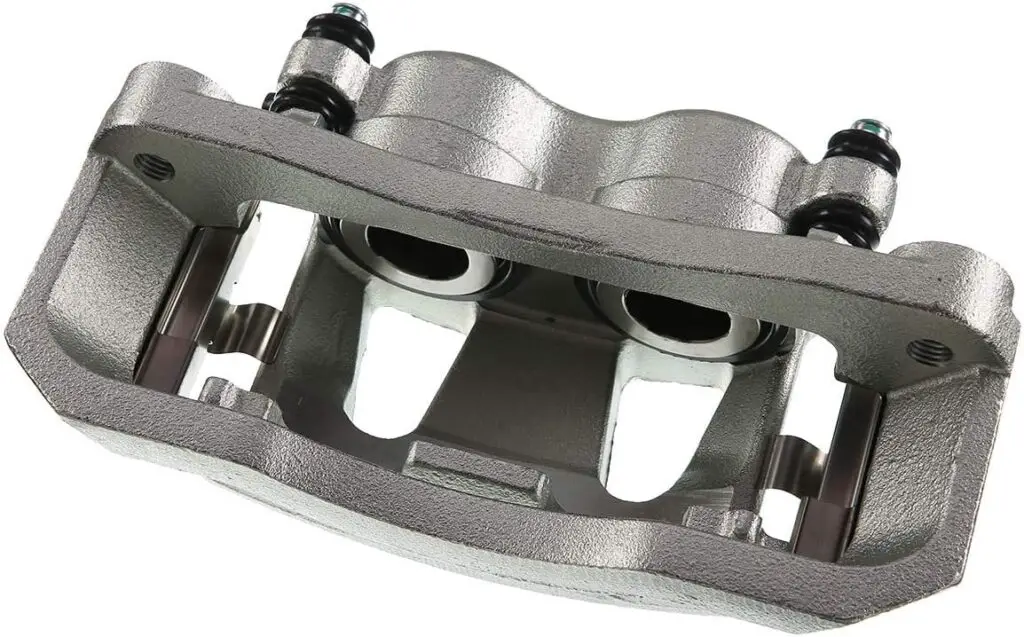

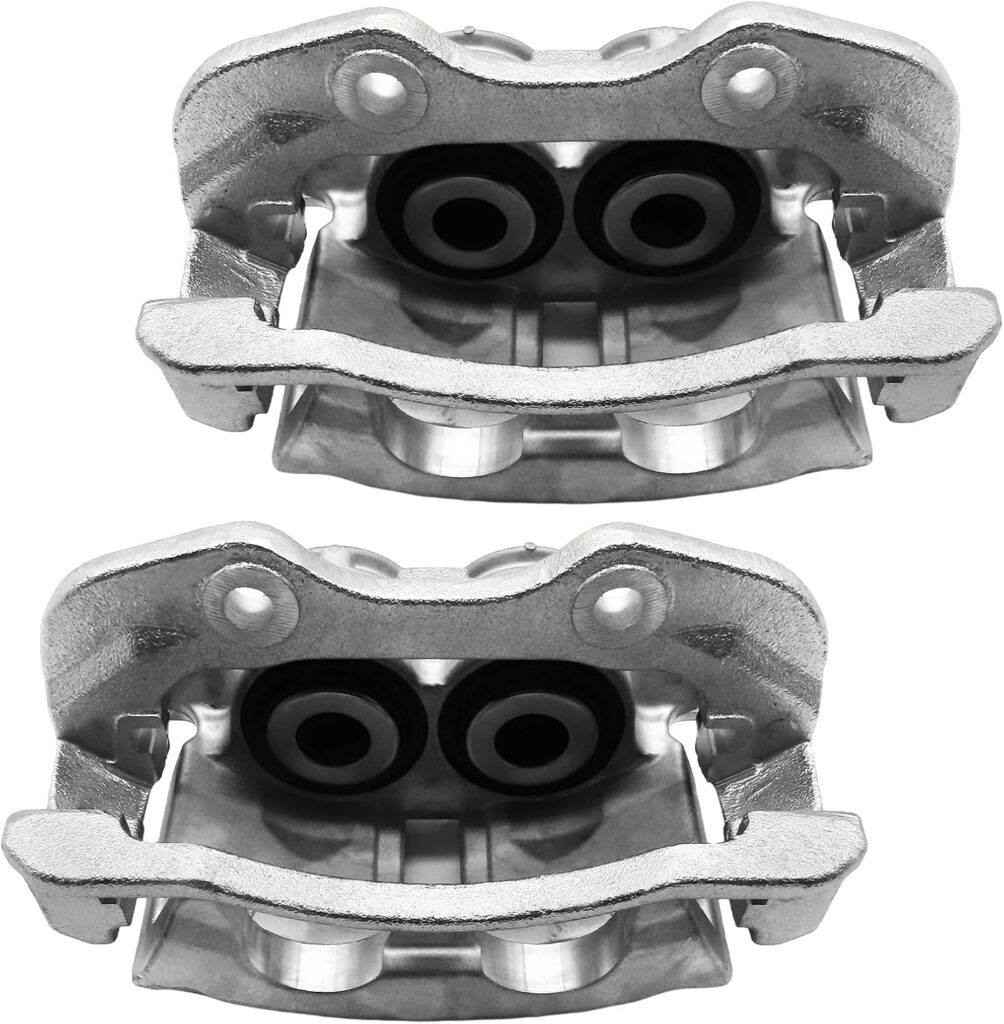

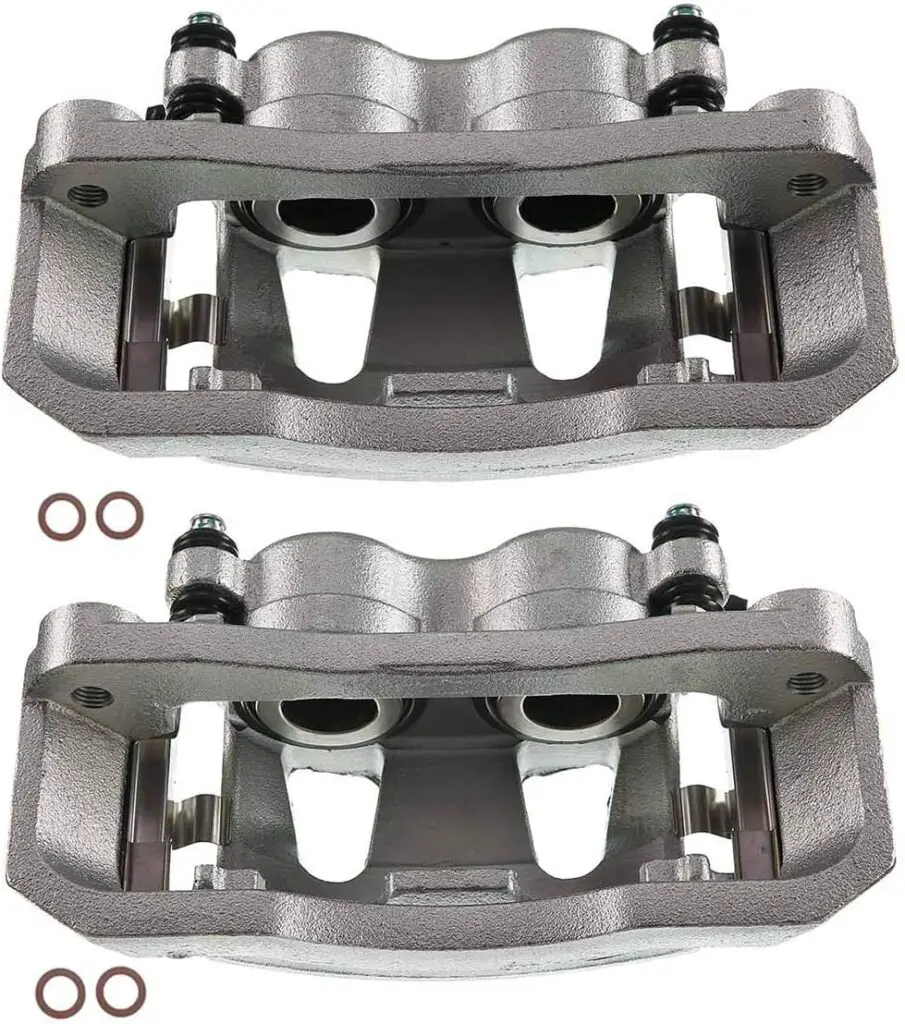

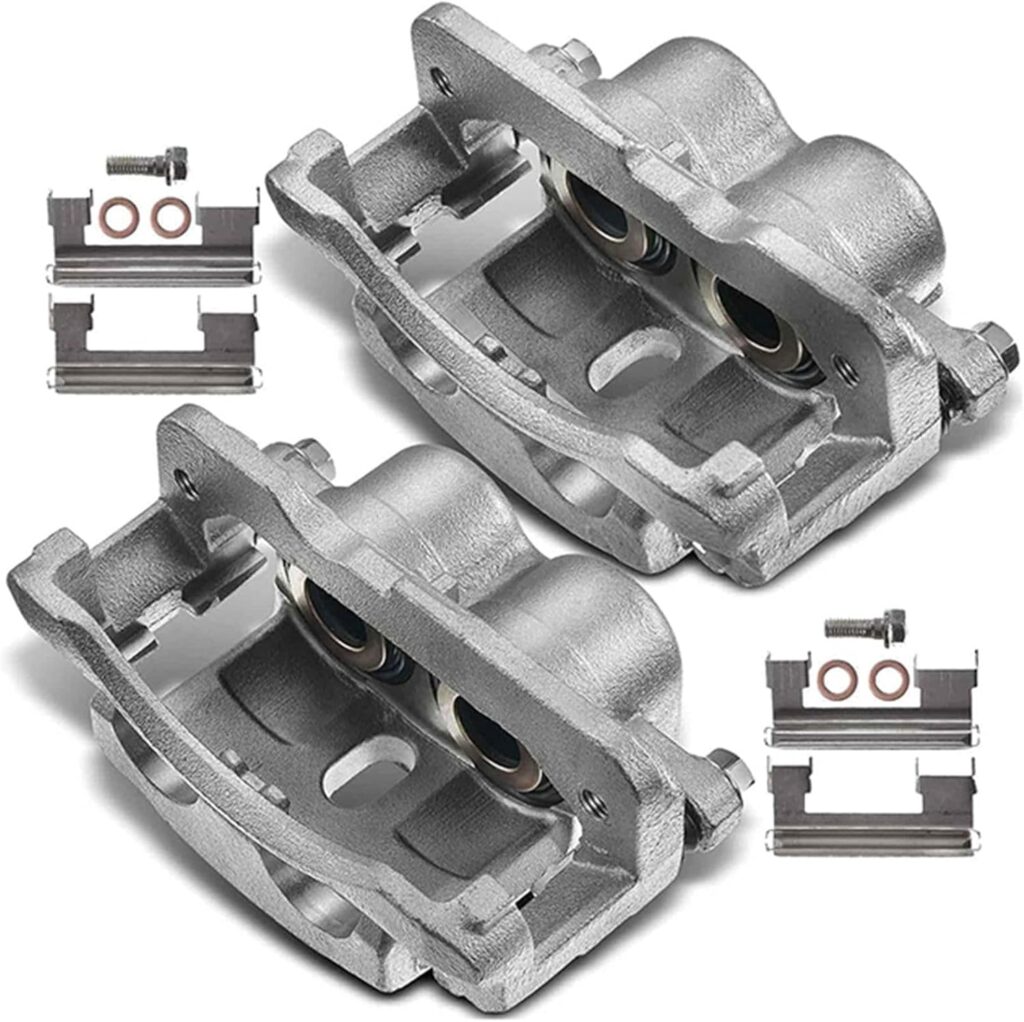

Two-Piston Calipers
One piston on each side of the rotor. They’re a solid step up from single-piston types and don’t break the bank.
Four-Piston Calipers
Four-piston calipers are popular on sports cars and performance vehicles. Two pistons per side mean better force distribution.
Six-Piston Calipers
You’ll find these on high-performance cars. Three pistons per pad for max clamping force and the most even pressure.
Some calipers mix up piston sizes to balance things out. Usually, you’ll see smaller pistons at the front and bigger ones behind. This helps keep pad wear even and maintains good contact with the rotor as the pad wears down.
Benefits of Multi Piston Calipers
Multi-piston calipers deliver stronger stopping power, spread pressure across the pads to avoid weird wear patterns, and do a better job of handling heat when things get intense.
Enhanced Braking Performance
I’ve noticed that multi piston calipers really boost braking compared to single-piston ones. The combined force from several pistons means more clamping pressure on the pads and rotor. That translates to shorter stopping distances—always a good thing.
Just to throw in a real-world example: When Bendix tested their kit on a Ford Ranger, stopping from 80 km/h went from 41.5 meters to 32.5 meters. That’s about 1.5 car lengths less.
All that extra force gives better control in emergencies. I can feather the brakes more precisely, dialing in just the right amount of stopping power. That’s huge for performance driving or if you’re hauling heavy stuff.
Even Pressure Distribution
Multiple pistons spread clamping force over a bigger area on the pads. Instead of squishing one spot, you get even pressure across the rotor.
The perks here are pretty clear:
- Less pad taper – Pads wear more evenly from end to end
- Bigger brake pads – More pistons mean you can use larger pads with extra friction material
- Predictable pedal feel – Even pressure gives you a consistent response every time
- Longer lifespan – Pads and rotors wear out more slowly when things are balanced
Honestly, I notice this most in day-to-day driving. The pedal always feels the same, whether it’s my first stop or my hundredth. That consistency builds trust in the brakes.
Improved Heat Dissipation
Brakes get hot, and too much heat leads to fade. Multi piston calipers handle this better in a couple of ways.
First, larger pads soak up and spread out heat better than smaller ones. More material means more room for the heat to go.
Second, even pressure means no hot spots on the rotor. When one spot gets all the force, it can overheat and warp the rotor. Multiple pistons prevent that by keeping things balanced.
Out in the mountains or on the track, I can feel the difference. The brakes stay strong, even after a bunch of hard stops. There’s no mushy pedal or fading performance.
Multi Piston Calipers vs Single Piston Calipers
The main difference between these styles is how they spread out braking force and handle heat. Single piston calipers use a floating design with one piston, while multi piston calipers have a bunch for better performance.
Key Differences
Single piston calipers are floaters. When I hit the brakes, the piston pushes one pad onto the rotor, and the caliper slides to pull the other pad in.
Multi-piston calipers are fixed, with pistons on both sides. So, multiple pistons push both pads at once. The big win is even pressure across the pad.
Single piston calipers are simple and have fewer parts. They’re cheaper to buy and fix. Multi-piston ones are more complicated and heavier, which bumps up cost and maintenance.
Performance Comparison
Multi-piston calipers clamp harder because all those pistons together can push more than just one. That means better bite and shorter stops.
Heat is another story. Multi-piston setups handle it better thanks to their bigger surface area. Single piston calipers can fade if you’re braking hard for a long time, since they don’t get rid of heat as well.
Pad wear is different too. Singles often wear pads unevenly, so you’re replacing them more. Multi-pistons keep things even, so pads last longer.
Applications of Each Design
In my experience, single piston calipers do fine for daily drivers and light-duty cars. They’re good enough for city driving and regular commutes, plus they’re easier on your wallet.
Multi-piston calipers really shine in performance cars and tough conditions. Sports cars, race cars, and anything that sees big hills or carries heavy loads get a lot from the extra stopping power. The better heat resistance is a lifesaver for towing or track days.
Bigger pads in multi-piston systems also help resist heat, making them great for trucks or vehicles that work hard.
Applications and Use-Cases
Multi piston calipers aren’t just for race cars anymore. They’re showing up in all sorts of vehicles—track-focused sports cars that need every ounce of stopping power, heavy trucks hauling big loads, and even electric cars, which have their own unique braking needs thanks to weight and regen systems.
High-Performance and Sports Cars
Performance vehicles really push their brakes to the limit. I’ve seen multi-piston brake calipers deliver faster stopping times on both road and track.
This lets drivers brake later into corners, which is honestly a thrill every time. Sports cars often come equipped with six to ten piston calipers straight from the factory.
These setups pair with big front rotors to handle the brutal heat from aggressive driving. More pistons spread the clamping force over a larger pad, so you get less brake fade during repeated hard stops.
Track driving puts a lot of stress on the brakes. Multi piston systems shine here since they manage heat better than single-piston designs.
The improved modulation gives drivers more precise control over brake pressure. That’s a big deal when you’re flying into a corner at speed.
Commercial and Heavy-Duty Vehicles
Heavy-duty trucks and commercial vehicles have their own set of challenges. They carry a ton of weight and need reliable braking power under load.
I’ve noticed that multi-piston calipers work well for heavy vehicles because they boost the total clamping force. The front axle takes most of the load when braking, so multi piston front calipers are especially important.
Commercial vehicles also get more even pad wear with these systems, which is great for keeping maintenance costs down. Better heat dissipation helps prevent brake fade, especially when hauling heavy loads down long grades.
Electric Vehicles and New Technologies
Electric vehicles are a different animal, mostly because of their battery weight and regenerative braking. The front rotor and caliper have to work in tandem with electric motors that help slow the car.
Multi piston calipers blend nicely with regenerative braking. When the electric system can’t quite do the job alone, the mechanical brakes step in smoothly.
The precise modulation from multi piston setups helps these two systems work together without any weird transitions. Battery packs add a lot of weight, usually low in the chassis, so you need strong brakes for emergency stops.
Multi piston calipers give you that extra clamping force, but still keep things smooth and controlled—the way EV drivers want it.
Brake Pad and Rotor Considerations
Multi-piston calipers need the right pad materials and rotor sizes to really work well. The pad compound has to handle more clamping force, and rotor size plays a direct role in stopping power and heat management.
Brake Pad Compatibility
I usually recommend semi-metallic or ceramic-metallic brake pads for multi-piston calipers. These handle higher temperatures way better than standard organic pads.
Performance brake kits typically include semi-metallic or ceramic-metallic pads matched to the caliper design. The pad’s surface area matters, since multi-piston calipers spread pressure over a bigger spot.
Pad flex is something to watch out for with longer pads. Multi-piston calipers use multiple contact points so the pad edges don’t bow up when you brake hard.
This way, the whole pad stays in contact with the rotor. The pad compound also has to resist fade, especially when things get hot—sometimes over 1000°F.
Rotor Sizing and Selection
When I upgrade to multi-piston calipers, I look for rotors that are the same size as stock or a bit bigger. Larger rotors generate more brake torque since the pad applies force farther from the wheel center.
Front rotors can usually go bigger without trouble, but you have to watch rear rotor sizing. Too much rear brake torque can upset brake bias and cause the rears to lock up early.
Rotor thickness and venting design make a difference for heat dissipation. Thicker rotors soak up more heat before things get dicey.
Vented rotors with internal cooling passages help shed heat faster, especially during repeated hard stops.
Installation and Maintenance
Installing multi-piston calipers isn’t rocket science, but you do need to pay attention. Proper alignment and technique make sure you get even pad wear and solid braking performance.
Regular maintenance is a must to avoid issues like seized pistons or fluid leaks—stuff you really don’t want to find out about the hard way.
Proper Fitting Procedures
When I put in multi-piston fixed calipers, I always check they’re perfectly parallel to the rotors. Fixed calipers squeeze from both sides, so alignment is critical.
First, I mount any new caliper brackets if the kit comes with them. Then I slide the caliper over the rotor and check for even gaps on both sides.
If it’s not lined up, you’ll get uneven pad wear—no thanks. Key installation steps:
- Mount the caliper brackets securely to the steering knuckle
- Position the caliper, ensuring equal spacing on both pad sides
- Torque all mounting bolts to the manufacturer’s specs
- Connect braided stainless lines if you have them
- Bench bleed the caliper before installation if you can
I always make sure each piston moves smoothly before bolting everything down. Saves a lot of headaches later.
Service Tips for Multi-Piston Calipers
I check multi-piston calipers more often than single-piston ones, just because there’s more that can go wrong. Every extra piston is another thing to keep an eye on.
During brake jobs, I clean each piston and inspect the dust boots for cracks or tears. Brake cleaner goes on all the parts, and I use high-temp grease on the pistons before putting it all back together.
Regular service checklist:
- Look for cracks in all piston dust boots
- Check for fluid leaks around pistons
- Make sure every piston moves smoothly
- Inspect the pad wear for weird patterns
- Test caliper slide pins if you’re working with floating designs
I pay extra attention to brake caliper maintenance on performance cars. They just run hotter, and that heat can ruin seals and fluid faster than you’d expect.
Common Maintenance Challenges
The toughest part with multi piston calipers is getting all those pistons out and back in during a rebuild. I use compressed air, but carefully—one piston at a time so nothing goes flying.
Seized pistons are pretty common in calipers with a lot of miles. If one sticks, I’ll use penetrating fluid and work it gently instead of forcing it, since cracking a caliper isn’t on my to-do list.
Some performance calipers have pistons of different sizes, which means you need the right seal kit. I always double-check that the rebuild kit matches my caliper before starting.
Bleeding multi piston calipers takes patience. Air can hide in different chambers, so I start at the piston farthest from the brake line inlet and work my way in. I keep the brake fluid topped up the whole time to avoid pulling in more air.
Trends and Innovations in Multi-Piston Calipers
The multi piston caliper market is changing fast, with new electronic features and better materials. ADAS and electric vehicles are pushing the market forward, so manufacturers are chasing lighter weight and better heat management.
Recent Technological Advancements
There’s been a real jump in materials lately. Manufacturers are using aluminum alloys and composites to cut weight but keep strength up.
Lighter calipers help with fuel efficiency and reduce unsprung mass, which is always a plus. Thermal management also got better with smarter heat dissipation designs.
New calipers have optimized cooling channels and heat-resistant coatings. These tweaks help prevent fade during hard braking.
Piston sizing is more advanced now. Modern calipers use different piston diameters to spread pressure evenly over the brake pads, which helps avoid pad taper and extends pad life.
Manufacturing has moved forward with computer-aided design and precise machining. Some brands even use 3D printing for prototypes or special projects.
Integration with Electronic Systems
Multi piston calipers now work hand-in-hand with electronic braking systems. I see them paired with ABS and ESC, communicating through sensors that watch wheel speed and brake pressure.
Electric vehicles need unique braking because of regenerative systems. Multi-piston calipers in EVs coordinate with the motors, blending mechanical and regenerative braking for max energy recovery and solid stopping power.
Brake-by-wire is the next big thing. It ditches mechanical links between the pedal and calipers, using electronic signals to control hydraulic actuators instead.
This setup means faster response and more precise brake control. It’s a little wild to think about, but that’s where things are headed.
Future Outlook for Multi-Piston Calipers
The global market is projected to grow from $1,571 million in 2025 to approximately $2.0 billion by 2033. That’s a pretty steady climb, and honestly, it doesn’t look like demand will slow down anytime soon.
Safety regulations and rising performance expectations will keep pushing things forward. Autonomous vehicles, for example, are going to need braking systems that are both more reliable and faster on the draw.
Multi-piston calipers will have to keep up, probably by integrating smarter sensors and speeding up actuation. There’s also this growing focus on predictive maintenance—think real-time monitoring that catches problems before they become dangerous.
Sustainability is another big driver. Manufacturers are already looking into recyclable materials and building calipers that last longer.
We’ll likely see more eco-friendly production and a reduced overall environmental impact. Carbon-ceramic composites, once limited to high-end models, may start appearing in regular cars as the costs decrease.
