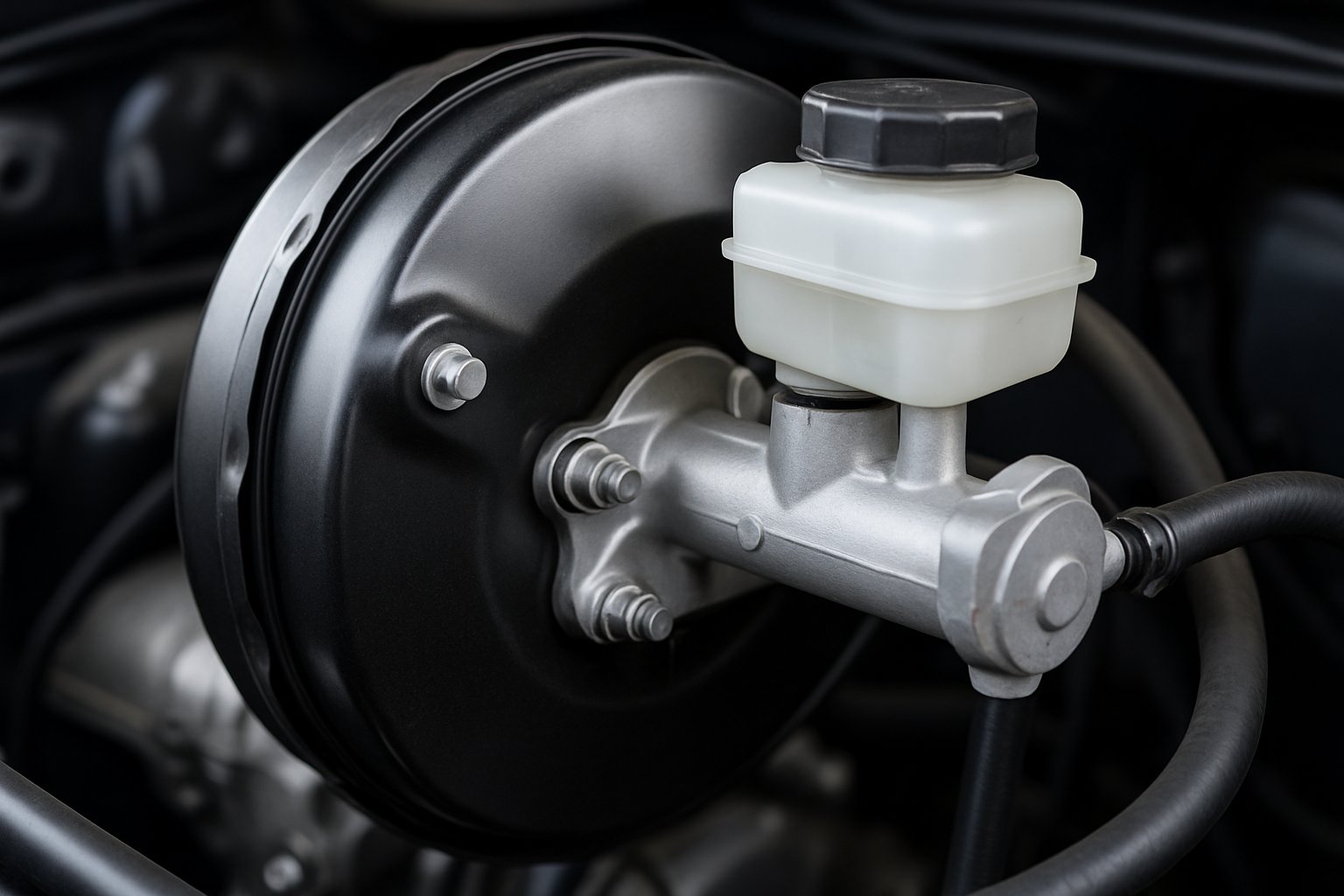

When I press my brake pedal, I’m not counting on just my leg strength to stop the car. A vacuum brake booster uses engine vacuum and atmospheric pressure to multiply the force I put into the brake pedal, usually turning my 40-60 pounds of effort into 200-300 pounds at the master cylinder.
This power assistance system makes braking safer and way less tiring. It’s honestly a game-changer for everyday driving.
Without a booster, I’d have to stomp much harder on the pedal to get the same stopping power. The system works by cleverly using the vacuum created by the engine’s intake manifold.
By controlling how atmospheric pressure enters a sealed chamber, the vacuum brake booster amplifies my braking force every time I step on the pedal. It’s simple, but honestly feels a bit like magic when you think about it.
Core Mechanism of Vacuum Boosters in Braking Systems
The vacuum booster creates braking force by using a pressure difference across a large diaphragm. This multiplies the force I put on the brake pedal before it even reaches the master cylinder.
This boost turns my moderate pedal pressure into hundreds of pounds of force, which then generates the hydraulic pressure needed to stop the car. It’s honestly kind of wild how much help that diaphragm gives.
How Vacuum Boosters Multiply Braking Force
When I press the brake pedal, the brake booster amplifies my pedal input by three to six times. My usual 40-60 pounds of effort becomes 200-300 pounds at the master cylinder piston.
This happens through a pushrod connected to the brake pedal. As I press down, it activates a control valve inside the booster.
The valve switches the rear chamber from vacuum to atmospheric pressure, while the front stays under vacuum. That difference is what multiplies the force.
The diaphragm’s surface area matters a lot. Bigger diaphragm? More force from the same pressure difference. That’s why trucks and SUVs have chunkier boosters than sedans.
A tandem vacuum brake booster uses two diaphragms in series, basically doubling the surface area. This setup gives 30-50% more assistance than single-diaphragm boosters of the same size, but doesn’t eat up much more space under the hood.

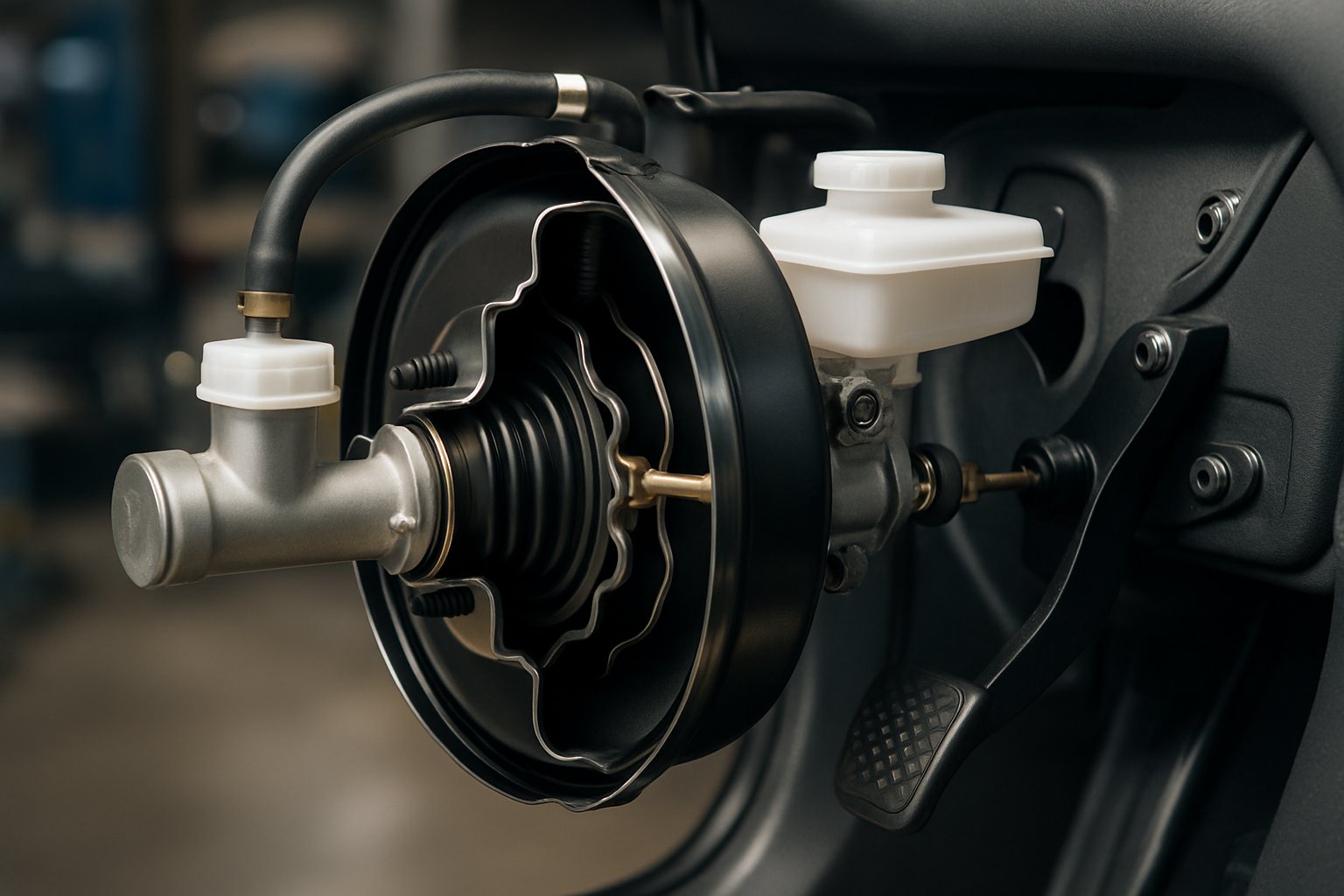

Pressure Differential and Diaphragm Function
The diaphragm splits the booster housing into two chambers that create the needed pressure difference. The front chamber stays connected to engine vacuum, usually around 17-21 inches of mercury.
The rear chamber switches between vacuum and atmospheric pressure. When I’m not braking, both chambers are under equal vacuum, so the diaphragm just sits in place thanks to a return spring.
As soon as I hit the brake, the control valve closes the vacuum port and opens the atmospheric port. Outside air at 14.7 psi rushes into the rear chamber, while the front chamber keeps its vacuum.
This makes a pressure difference of about 10 psi on the diaphragm’s 50-80 square inches. The result? A lot of extra force is pushing on the master cylinder.
The diaphragm plate, which is bonded to the rubber diaphragm, gives it strength and connects to the output pushrod. When atmospheric pressure pushes the diaphragm forward, it moves the pushrod into the master cylinder—amplifying my effort.

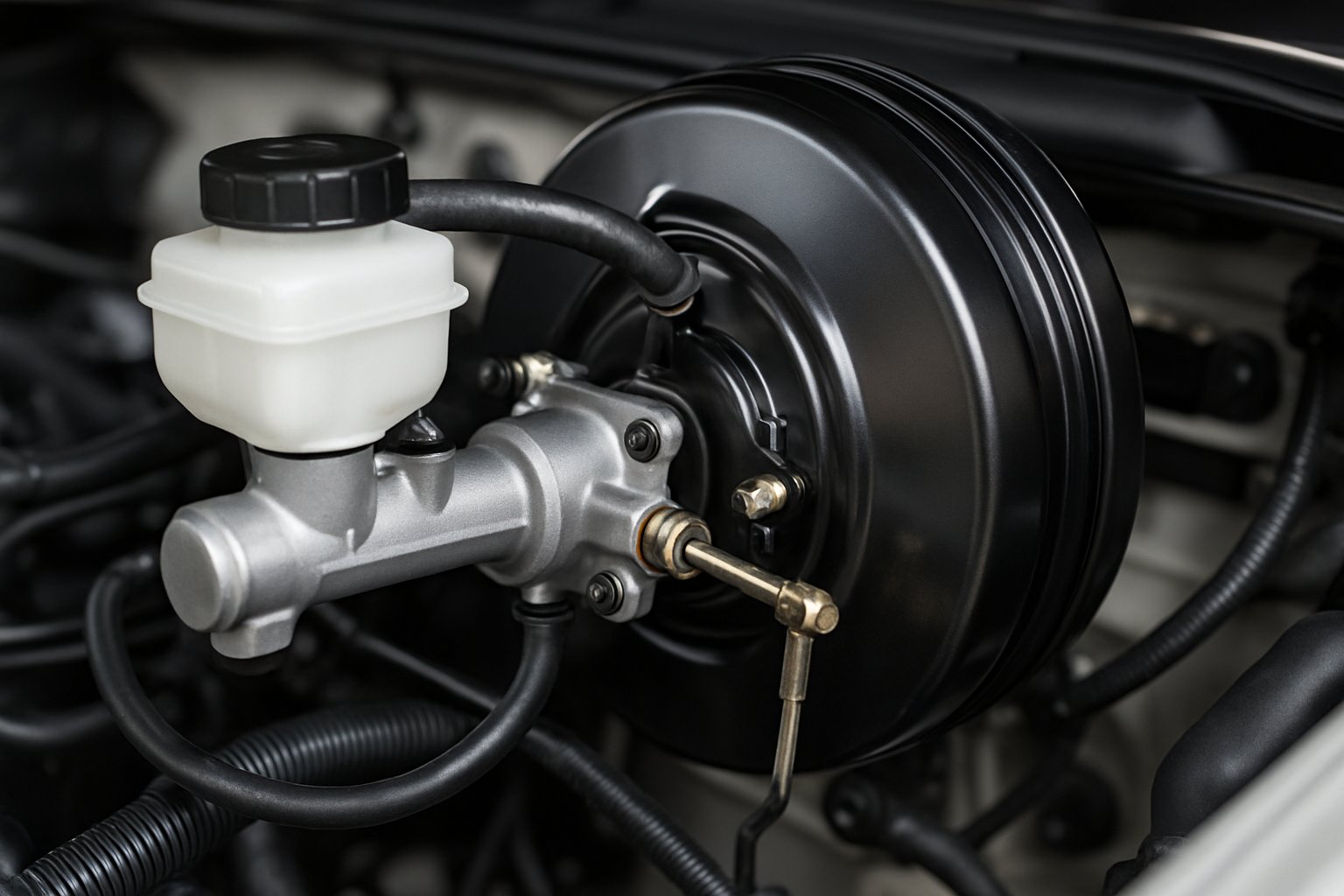

Role of the Master Cylinder and Hydraulic Pressure
The master cylinder turns the mechanical force from the booster into hydraulic pressure, which goes to the brakes at each wheel. The booster’s pushrod presses right on the master cylinder piston, squeezing brake fluid inside.
The master cylinder usually generates 800-1,200 psi of hydraulic pressure thanks to the booster’s help. Without it, I’d need to push the pedal with over 100 pounds of force for the same result.
A small rubber part, the reaction disc, sits between the booster’s pushrod and the master cylinder piston. As hydraulic pressure builds, it pushes back on the pushrod. The reaction disc squishes a bit under this load and gives me feedback through the pedal, so I can modulate the brakes smoothly.

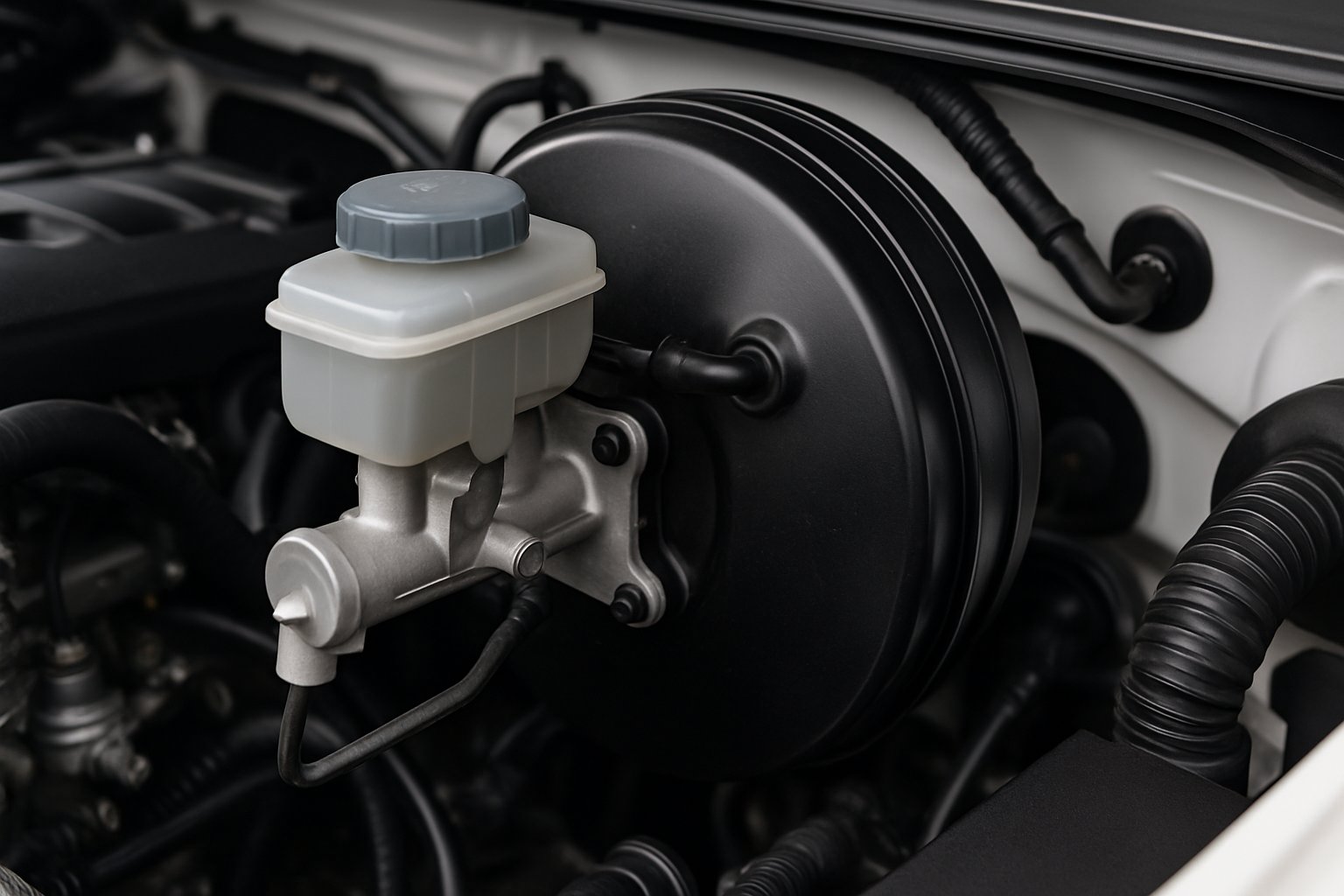

Vacuum Sources and Essential Components
A vacuum booster needs a steady vacuum source, which usually comes from the engine’s intake manifold or sometimes an auxiliary pump. Supporting parts like check valves, reservoirs, and filters keep the vacuum level consistent for reliable brake assist.
Engine Vacuum and Intake Manifold
The intake manifold is the main vacuum source for most gasoline vehicles. When I press the gas, the engine creates negative pressure as air flows through the throttle body, usually between 15 and 22 inches of mercury at idle.
The engine vacuum connects to the brake booster through a special port. This setup is simple and reliable for most traditional engines, but diesel engines don’t produce much vacuum since they lack a throttle plate.
Modern cars with turbochargers or direct injection can lose some vacuum during certain driving conditions. That’s why knowing how vacuum brake boosters work helps when tracking down braking issues.
Vacuum Reservoirs, Pumps, and Check Valves
Sometimes I see vacuum reservoirs—small tanks that store vacuum pressure for times when the engine can’t provide enough. These help the booster keep working, even during hard acceleration.
An electric vacuum pump is needed on hybrids and electric cars, since their engines aren’t always running. These pumps create vacuum pressure on their own. Diesels also use vacuum pumps because they can’t make enough vacuum naturally.
The check valve is key. It stops outside air from getting into the booster when the engine’s off, keeping vacuum in the system. If the check valve fails, brake assist disappears fast, and you might hear a hissing sound.
Vacuum Lines and Control Valves
Vacuum lines carry the negative pressure from the intake or pump to the booster. These hoses need to be airtight—leaks mean less brake assist.
I check these lines now and then, since heat and vibration can crack or loosen them. If I spot cracks or loose connections, that’s a red flag. A vacuum gauge is handy for checking vacuum levels and finding leaks.
Control valves inside the booster decide when air comes in. They react to my pedal movement, controlling the pressure difference that boosts my braking. If they don’t work right, the pedal feel can get weird.
Atmospheric Chamber and Air Filter
The atmospheric chamber sits on one side of the diaphragm and lets outside air in when I brake. This chamber needs clean air to avoid gumming up the internals.
An air filter keeps dust and moisture out, protecting the diaphragm and control valve. Some boosters have a little filter at the air inlet, and others use the cabin air filter. Clean air keeps the booster working smoothly for years.
Impact on Braking Performance and Pedal Feel
Vacuum brake boosters really change how much force goes to the brakes and how the pedal feels. They amplify my input and make it way easier to stop safely.
Improvement in Braking Efficiency and Safety
When I hit the brakes, the vacuum booster multiplies my effort by 2 to 4 times. That’s a lot more stopping power than I could ever manage alone.
Vacuum brake boosters can cut stopping distance by up to 20%, which is a big deal in emergencies. Faster braking means I can react quicker when something unexpected pops up.
These boosters also play nicely with safety systems like ABS and ESC, which need steady hydraulic pressure. When the booster keeps assist levels up, those features work like they’re supposed to.
Key Safety Benefits:
- Faster reaction in emergencies
- Shorter stopping distances
- Better teamwork with ABS and ESC
- Consistent braking at different speeds
Effects on Pedal Effort and Brake Pedal Feel
The booster makes the pedal much easier to press during daily driving. Without it, I’d get tired legs fast on longer trips.
I notice a better pedal feel because the feedback mechanism gives proportional braking force. The pedal responds predictably, letting me control braking pressure smoothly. That consistency helps me judge how much pressure to use in any situation.
The design gives a mechanical advantage, so even small foot movements create strong braking. Nearly 60% of drivers say pedal feel improves after adding a good booster, at least according to some industry stats.
Reduction of Hard Brake Pedal Occurrences
A working vacuum booster keeps the pedal from getting stiff and hard to press, which is both annoying and dangerous. When the booster does its job, the pedal stays comfortable and responsive.
Hard pedal problems usually mean a vacuum leak or booster failure. That could be a cracked hose, a damaged diaphragm, or a bad check valve. Any of those kills the power assist and forces me to stomp the pedal way harder.
Some warning signs? A stiff pedal, hissing noises, or longer stopping distances. If I spot those, I know it’s time to check the booster and vacuum system before things get sketchy.
Common Issues and Diagnostic Indicators of Vacuum Boosters
When vacuum boosters go bad, they can create serious safety problems and mess with both braking and engine performance. I’ve found that catching the warning signs early—like odd noises or changes in pedal feel—can help avoid dangerous situations on the road.
Vacuum Leaks and Their Effects
A vacuum leak is honestly one of the most common issues I run across with brake boosters. These leaks usually pop up when the rubber diaphragm wears out, the atmospheric valve seal gives up, or the vacuum hoses start cracking.
When vacuum leaks disrupt the air-fuel mixture, they let unmetered air sneak into the intake manifold. This causes trouble that goes beyond just the brakes.
The engine has a tough time holding a steady idle because it’s getting more air than the computer expects. I notice this a lot when drivers hit the brakes at low speeds or just wait at a stoplight.
The extra air messes with the balance the engine needs to run smoothly. It’s pretty easy to spot if you know what to look for.
Leaks in vacuum lines, hoses, or the brake booster itself break up the vacuum and lead to weak or lost brake assist. The booster can’t create the pressure difference it needs to give you that extra stopping power.
Symptoms: Hissing Noise, Engine Stall, and Warning Lights
I always listen for a hissing noise in the cabin when the brake pedal’s pressed. That brake hiss usually means the atmospheric valve seal has failed and, well, the whole booster unit needs to go.
The most common warning signs include:
- Hard brake pedal requiring excessive force to stop
- Hissing sound when applying brakes
- Rough idle or engine performance issues
- The engine stalls when braking at stops
- Check engine light illumination from vacuum-related codes
Engine stalling happens because the vacuum leak throws off the engine computer. When I brake, unmetered air rushing in through the booster leak can make the engine stumble or just die.
The check engine light might pop on if the leak gets bad enough to trigger trouble codes. Modern cars keep an eye on air flow and can tell when something’s off.
Consequences of Vacuum Booster Failure
If a vacuum brake booster fails, the brakes still work, but require more pedal force. I’ve watched drivers really struggle to stop in emergencies because they just can’t push hard enough.
Stopping distances get way longer when the power assist disappears. What used to take a normal push now demands all your strength, and honestly, not everyone can manage it.
The pedal feels rock hard and high, almost like you’re pressing against a brick wall. That’s not something you want to ignore.
Brake fluid contamination sometimes happens when the master cylinder’s rear seal leaks. The fluid gets sucked into the booster and wrecks the rubber diaphragm.
This can mean lower brake pedal effort or, in the worst case, zero power assist.
I always recommend getting things checked out or even towing the car if the booster fails. Driving like that just isn’t worth the risk—emergency stops are nearly impossible.
Types, Variations, and Applications Across Vehicle Technologies
Brake boosters come in a few different types, each meant for specific power sources and vehicle setups. Picking between vacuum, hydraulic, and electric systems really depends on the engine, vehicle weight, and what kind of performance you need.
Vacuum Brake Booster Versus Hydraulic and Electric Boosters
The vacuum brake booster—sometimes called a vacuum servo—is the go-to for most gasoline vehicles. It uses vacuum pressure from the engine to multiply the force you put on the pedal. Honestly, it’s lightweight and cheap, which is probably why it’s everywhere.
Hydraulic brake boosters are a different animal. They use pressurized fluid from the power steering system to help with braking. I see these a lot in cars that just don’t make enough vacuum, like high-performance engines with wild camshafts.
Electric brake boosters are the latest thing. They use an electric motor instead of vacuum or hydraulic pressure to boost braking. Since they don’t care if the engine’s running or not, they’re perfect for brake-by-wire setups. Electric brake boosters are getting more popular as cars get smarter and more autonomous.
For performance builds and heavy-duty stuff, hydroboost systems give you serious stopping power—though they’re a bit more complicated and pricey.
Use in Diesel Engines and Electric Vehicles
Diesel engines are tricky for vacuum brake boosters. Unlike gas engines, diesels barely make any vacuum. Manufacturers usually fix this by adding a separate vacuum pump for the booster.
Electric vehicles ditch the engine altogether, so there’s no vacuum to use. They rely on electric brake boosters, which work nicely with regenerative braking that grabs energy when you slow down.
The electric booster gives you steady brake assist, no matter what’s going on with the battery or motors. Some hybrids mix it up and use a little vacuum reservoir or electric pump to keep brake assist working when the engine’s off.
Adaptations for Different Vehicle Sizes and Use Cases
Vehicle size really changes what kind of booster you need. Vacuum brake boosters come in single sizes from 9 to 11 inches or tandem versions from 8+8 to 10+10 inches.
Small cars usually get by with a single-chamber booster. Bigger vehicles need tandem boosters to stop safely.
Light commercial vehicles need tougher systems because they’re heavier and carry more. I lean toward tandem vacuum or hydraulic boosters for these. Heavy-duty trucks usually skip vacuum altogether and go for air brake boosters.
Performance cars might use a larger booster or switch to hydraulic if engine mods cut down on available vacuum. Aggressive camshafts can really mess with vacuum levels.
Maintenance and Best Practices for Vacuum Booster Longevity
Checking vacuum hoses and valves regularly goes a long way in preventing booster issues. Keeping brake fluid topped off and clean helps the whole system work together.
Routine Checks and Preventive Maintenance
I suggest giving your vacuum hoses a look every six months for cracks or loose spots. They’re what carry vacuum from the engine to the booster, and even tiny leaks can make braking weaker.
Key Inspection Points:
- Vacuum hoses – Watch for cracks, splits, or mushy spots
- Check valve – Take it off and blow through it; air should only go toward the booster
- Brake fluid – Check it monthly and swap it out every 2-3 years
- Booster connections – Make sure everything’s tight and secure
At every oil change, I do a quick pedal test. With the engine off, pump the brake a few times to use up any vacuum, then start the engine while holding the pedal. If the booster works, the pedal should dip a bit.
Regular maintenance of vacuum brake boosters keeps them alive longer and helps the brakes feel right. I also listen for any hissing when pressing the pedal—usually a sign of a leak somewhere in the system.
Diagnosing and Repairing Vacuum-Related Problems
When I notice a hard brake pedal that takes way too much effort, insufficient vacuum in the brake booster is usually to blame.
Most boosters really need about 18-22 inHg of vacuum to work right. Anything less, and you’re probably in for a tough stop.
Common Problems and Solutions:
| Problem | Cause | Fix |
|---|---|---|
| Hard pedal | Vacuum leak or failed booster | Replace hoses or booster |
| Hissing noise | Torn diaphragm | Replace booster |
| Engine stalling | Severe vacuum leak | Replace hoses or the booster |
I usually grab a vacuum gauge and hook it to the booster line to check real vacuum levels. If I see anything under 18 inHg, it’s time to hunt for leaks along the vacuum supply from the intake manifold.
Diesel and turbocharged cars are a bit trickier. I have to watch the vacuum pump that supplies the brake booster since those engines don’t make much vacuum on their own.
If the vacuum pump’s going bad, you’ll get the same lousy brake feel as with a bad booster. But in that case, swapping the pump is the real fix.
